Applications Studies

CFRP Monolithic Component

Linear scale C‐Scan image.
Color range 70% FSH. White color 0% FSH. Red color over 70% FSH.

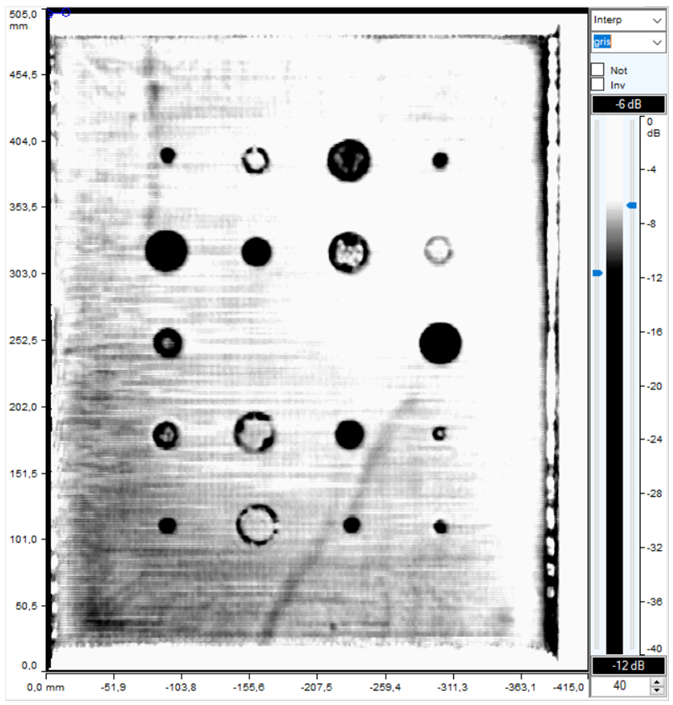

Logarithmic scale C‐Scan image.
Color range 6 dB. Black under -12 dB. White over -6 dB.

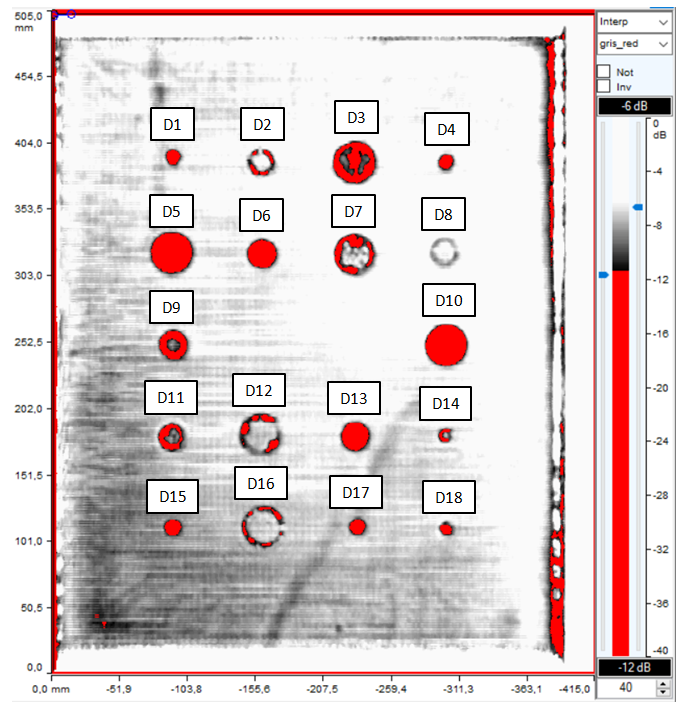

Logarithmic scale C‐Scan image.
Color range 6 dB. Red under -12 dB. White over -6 dB.
DefectMeasured Size
Criterion -6 dB
ContrastReal Size
D1Ø 10 mm6 dBØ 10 mm
D2Ø 20 mm6 dBØ 20 mm
D3Ø 30 mm6 dBØ 30 mm
D4Ø 10 mm6 dBØ 10 mm
D5Ø 30 mm 6 dBØ 30 mm
D6Ø 20 mm6 dBØ 20 mm
D7Ø 30 mm6 dBØ 30 mm
D8Ø 20 mm4 dBØ 20 mm
D9Ø 21 mm6 dBØ 20 mm
D10Ø 30 mm6 dBØ 30 mm
D11Ø 20 mm6 dBØ 20 mm
D12Ø 30 mm6 dBØ 30 mm
D13Ø 20 mm6 dBØ 20 mm
D14Ø 10 mm6 dBØ 10 mm
D15Ø 11 mm6 dBØ 10 mm
D16Ø 30 mm6 dBØ 30 mm
D17Ø 10 mm6 dBØ 10 mm
D18Ø 10 mm6 dBØ 10 mm
Measure of the defects.
